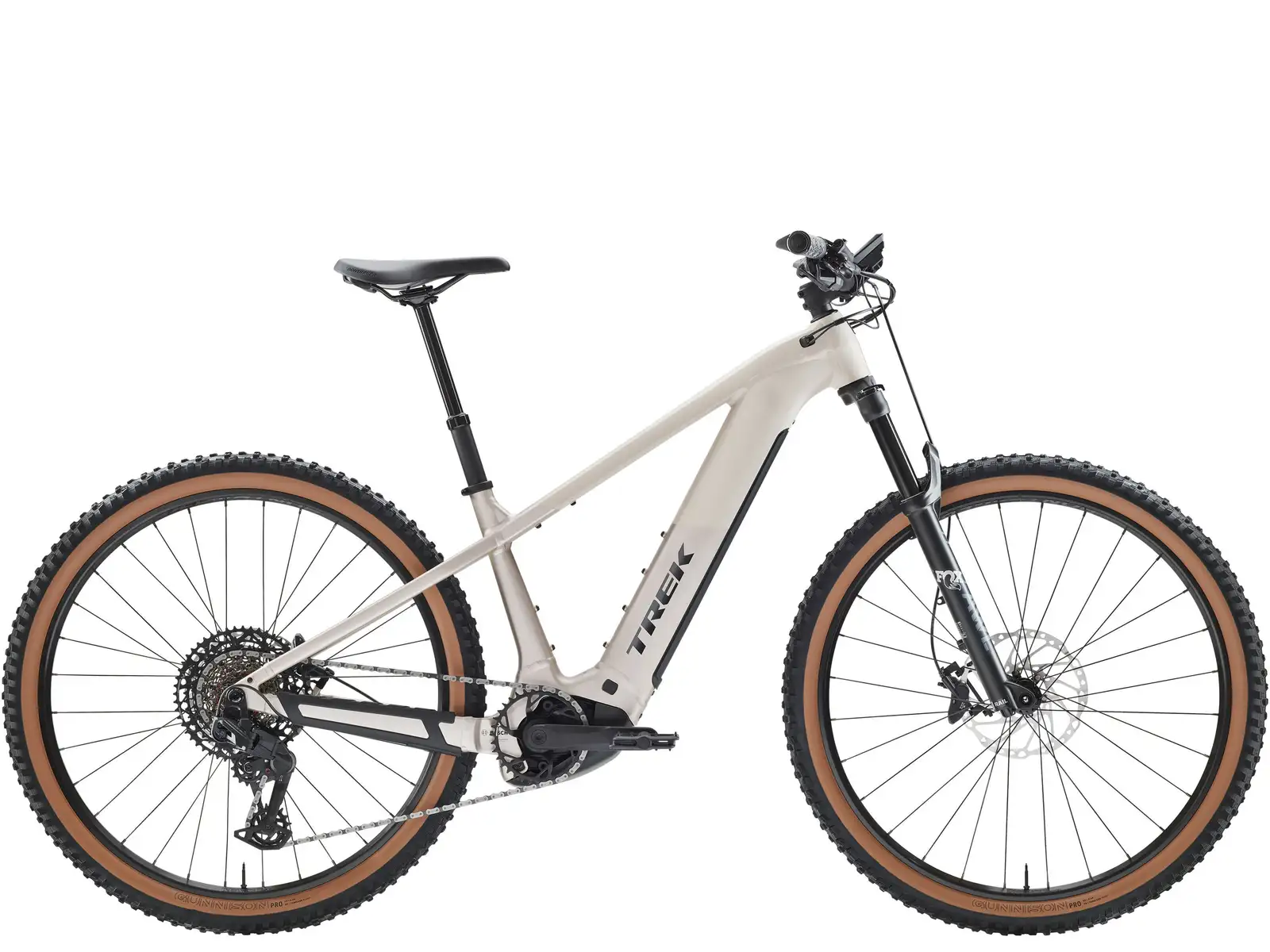

Trek
Price €4.499,00
Available colours
Battery options
Frame shape
DiamondLease this bike through your employer. Calculate the lease price per month
€
€
Please note: the stated lease and sales prices are indicative. The sales price of the (web)shop is leading for the final lease price.
Costs per month from
Specifications
+−
In general
Model year
2027
Rear wheel size
29
Front wheel size
29
Fork
Fork brand
Fox
Fork model
Fox AWL Rail, Rail 2.0 demper, taps toelopende stuurbuis, 44 mm offset, Boost110, 15 mm Kabolt-as, 180 mm direct-mount, 120 mm veerweg, 29"
Stem
Stem brand
Bontrager
Stem model
Bontrager Rhythm Comp, 31,8 mm, 0 graden, 50 mm lengte
Chain
Chain brand
Sram
Chain model
SRAM Eagle 70, T-Type, 12-speed
Frame
Frame size
42
Frame type
Uni
Frame material
Aluminium
Frame size
L
Gears
Gear type
Derailleur
Gear brand
Sram
Gear model
SRAM Eagle 70, T-Type
Number of gears
1
Tyres
Tyre brand
Bontrager
Tyre model
Bontrager Gunnison Pro XR, Tubeless Ready, Dual Compound, aramide hieldraad, 60 tpi, 29 x 2.40”
Pedals
Pedals brand
Merkloos
Pedals model
Nylon platform
Saddle
Saddle brand
Bontrager
Saddle model
Bontrager Commuter Comp
Wheels
Wheels model
Bontrager Kovee, dubbelwandig, Tubeless Ready, 28-gaats, 23 mm velgbreedte, Presta-ventiel // Bontrager Kovee, dubbelwandig, Tubeless Ready, 32-gaats, 23 mm velgbreedte, Presta-ventiel
Shimano TC500 lichtmetaal, centerlock, 110 x 15 mm steekas
Shimano TC500 Aluminium, Centerlock, 148x12 mm steekas
Headset
Headset brand
FSA
Headset model
FSA IS-2, 1-1/8" bovenzijde, 1.5" onderzijde
Cassette
Cassette brand
Sram
Cassette model
SRAM Eagle XS-1270, T-Type, 10-52, 12-speed
Crankset
Crankset brand
Merkloos
Crankset model
FSA-legering, lengte 160 mm
Geometry
Trail
11.7
Offset
4.4
Wheelbase
122.6
Head angle
66.5
Frame reach
46.5
Frame stack
65.5
Top tube length
64
Seat tube angle
73.4
Chainstay length
46.1
Head tube length
12.3
Seat tube length
42
Stand over height
74.6
Bottom bracket drop
6.5
Bottom bracket height
31.5
Seatpost
Seatpost brand
Bontrager
Seatpost model
Bontrager Line Dropper, 170 mm verstelbereik, MaxFlow, interne kabelvoering, 31,6 mm, 450 mm lengte
Shifters
Shifters brand
Sram
Shifters model
SRAM Eagle 70, 12-speed
Handlebar
Handlebar brand
Bontrager
Handlebar model
Bontrager Comp, lichtmetaal, 31,8 mm, 40 mm rise, breedte 780 mm
Front brake
Front brake type
Schijfrem met hydraulische bediening
Front brake brand
Shimano
Front brake model
Shimano BR-MT620 hydraulic disc // Shimano BR-MT620 hydraulische schijfrem
Shimano RT64, centerlock, 203 mm
Maximale maten remsc
Seatpost clamp
Seatpost clamp brand
Merkloos
Seatpost clamp model
Schroefconstructie, 36,4 mm
Rear derailleur
Rear derailleur brand
Sram
Rear derailleur model
SRAM Eagle 70, T-Type
Bar tape/Grips
Bar tape/Grips brand
Bontrager
Bar tape/Grips model
Bontrager XR Endurance Elite
Rear brake
Rear brake type
Schijfrem met hydraulische bediening
Rear brake brand
Shimano
Rear brake model
Shimano BR-MT620 hydraulic disc // Shimano BR-MT620 hydraulische schijfrem
Shimano RT64, centerlock, 203 mm
Maximale maten remsc
E-bike Specifications
+−
In general
E-bike type
Normaal
Walk assist
Yes
spec_handle_control
Yes
Drivetrain brand
Bosch
Order without battery
No
Order without charger
No
spec_order_without_display
No
Engine
Engine brand
Bosch
Engine model
Bosch Performance Line CX (Europa en APAC: 25 km/u, VS en ROW: 32 km/u)
Display
Display brand
Bosch
Display model
Bosch Kiox 300, smart system
spec_operation_type
Stuurbediening (Midden)
