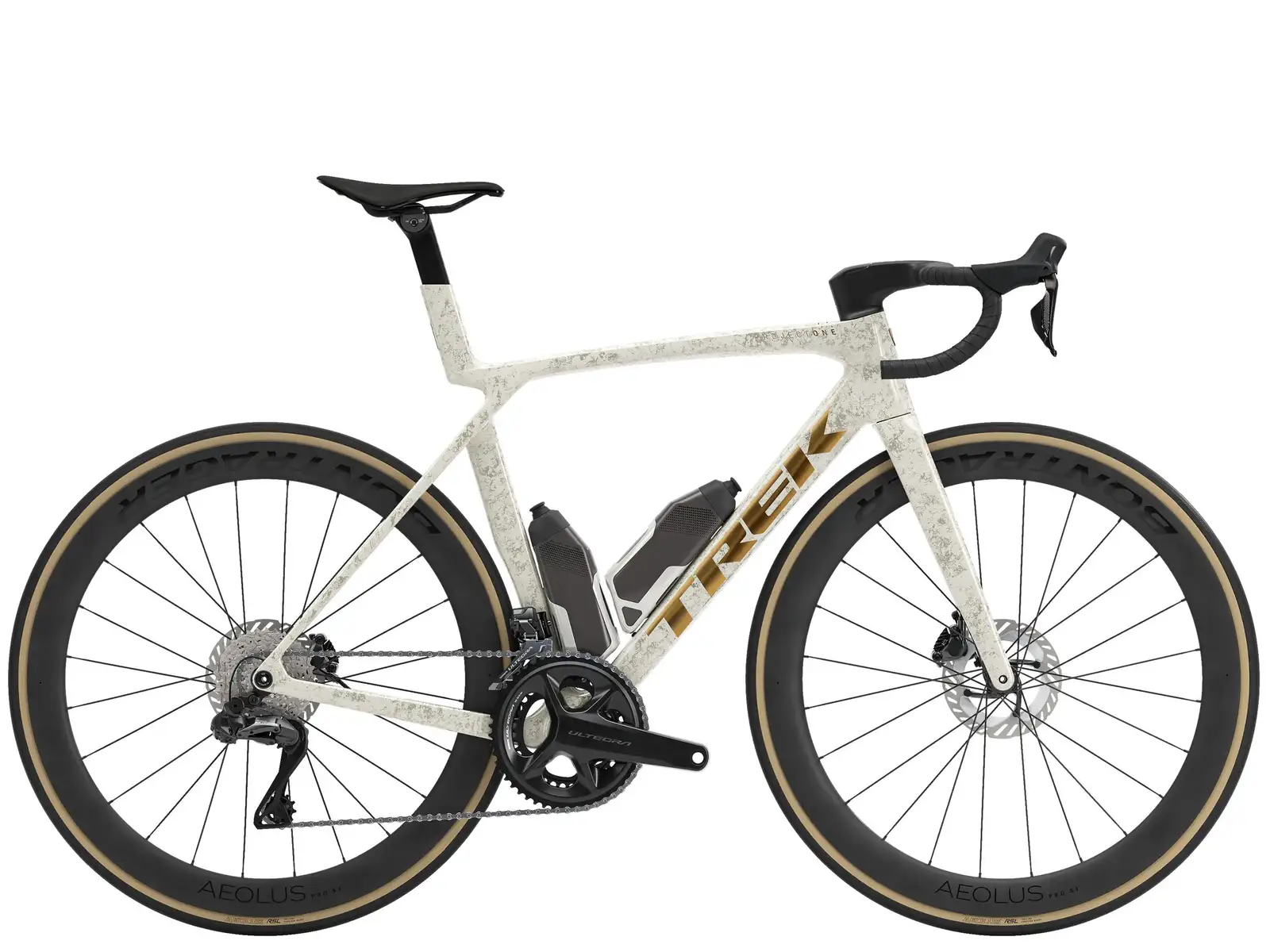

Trek
Price €7.999,00
Available colours
Frame shape
DiamondLease this bike through your employer. Calculate the lease price per month
€
€
Please note: the stated lease and sales prices are indicative. The sales price of the (web)shop is leading for the final lease price.
Costs per month from
Specifications
+−
In general
Model year
2027
Rear wheel size
28
Front wheel size
28
Fork
Fork brand
Trek
Fork model
Madone Gen 8 uit één stuk carbon, taps toelopende carbon stuurbuis, interne remkabelgeleiding, flat-mount schijfrembevestiging, 12 x 100 mm afgeschuinde steekas
Chain
Chain brand
Shimano
Chain model
Shimano Ultegra/XT M8100
Frame
Frame type
Uni
Frame material
Carbon
Frame size
XS
Gears
Gear type
Derailleur
Gear brand
Shimano
Gear model
Shimano Ultegra R8150 Di2, max. tandwielgrootte 34T
Number of gears
1
Tyres
Tyre brand
Pirelli
Tyre model
Pirelli P Zero Race TLR RS, 120 tpi, geschikt voor tubeless, 700x28 mm
Saddle
Saddle brand
Trek
Saddle model
Trek Aeolus Pro, koolstofvezelrails, breedte 145 mm
Wheels
Wheels brand
Bontrager
Wheels model
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100 x 12 mm steekas
Bontrager Aeolus Pro 51, OCLV carbon, Tubeless Ready, Shimano 11/12-speed freewheelbody, 142 x 12 mm steekas
Cassette
Cassette brand
Shimano
Cassette model
Shimano Ultegra R8101, 11-30, 12-speed
Crankset
Crankset brand
Shimano
Crankset model
Shimano Ultegra R8100, 52/36, 160mm length
Praxis, T47 met schroefdraad, interne lagers
Geometry
Trail
6.1
Offset
5
Wheelbase
97.1
Head angle
71.6
Frame reach
37
Frame stack
50.7
Top tube length
51.7
Seat tube angle
73.8
Chainstay length
41
Head tube length
10
Seat tube length
40.4
Stand over height
70.4
Bottom bracket drop
7.2
Seatpost
Seatpost brand
Merkloos
Seatpost model
Madone aero carbon zadelpen, 0 mm offset, korte versie
Shifters
Shifters brand
Shimano
Shifters model
Shimano Ultegra R8170 Di2, 12-speed // Shimano Ultegra R8170 Di2, 12-speed

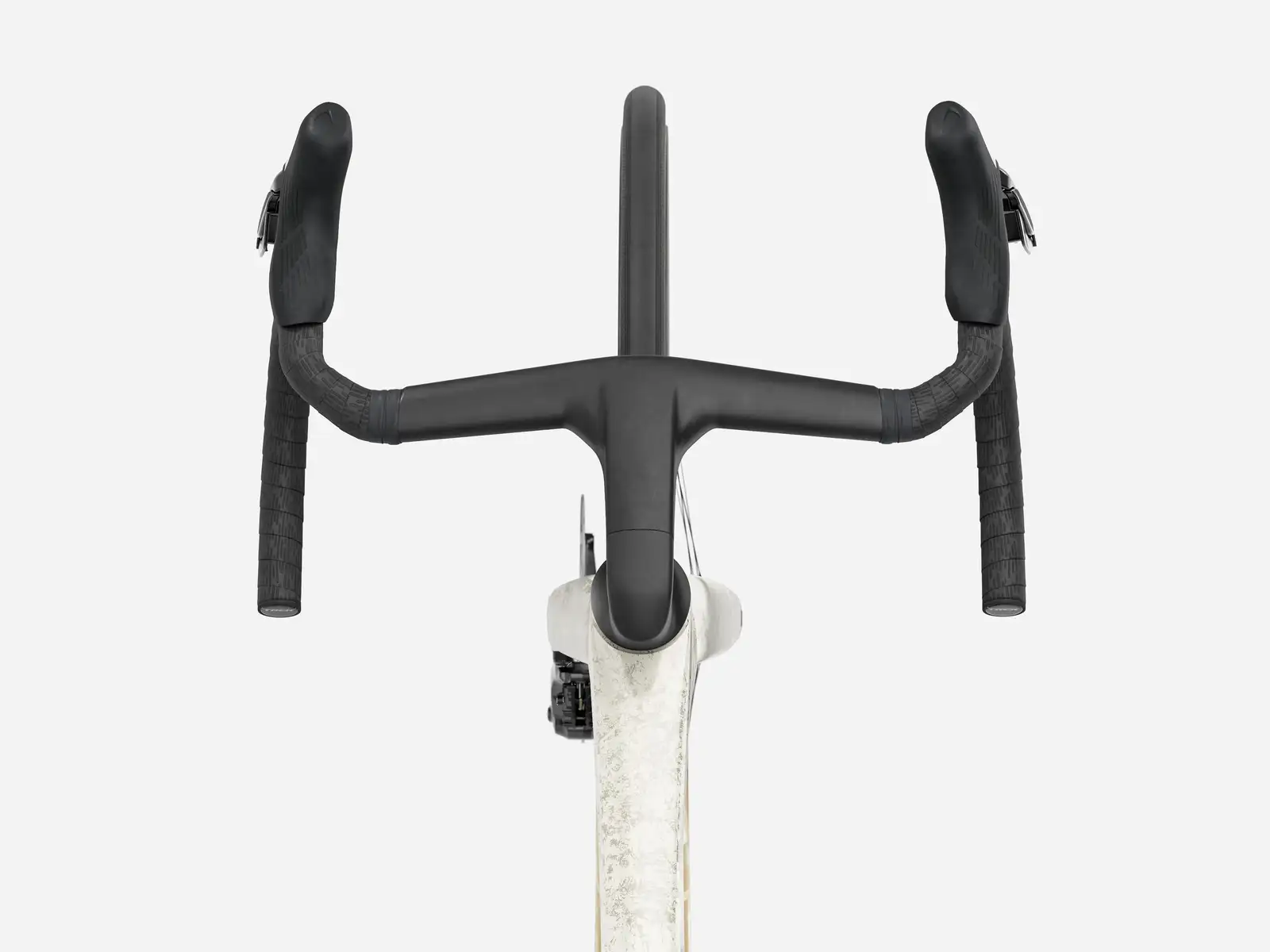

Handlebar
Handlebar brand
Trek
Handlebar model
Trek Aero RSL geïntegreerde stuur/stuurpen, OCLV Carbon, race-geometrie, 80 mm reach, 124 mm drop, 35 cm breedte bij hendels, drop-breedte 38 cm, stuurpenlengte 80 mm
Front brake
Front brake type
Schijfrem met hydraulische bediening
Front brake brand
Merkloos
Front brake model
Shimano CL800, centerlock, 160 mm
Maximale diameter re
Rear derailleur
Rear derailleur brand
Shimano
Rear derailleur model
Shimano Ultegra R8150 Di2, max. tandwielgrootte 34T
Front derailleur
Front derailleur brand
Shimano
Front derailleur model
Shimano Ultegra R8150 Di2, aanlasnok, down swing
Rear brake
Rear brake type
Schijfrem met hydraulische bediening
Rear brake brand
Merkloos
Rear brake model
Shimano CL800, centerlock, 160 mm
Maximale diameter re
