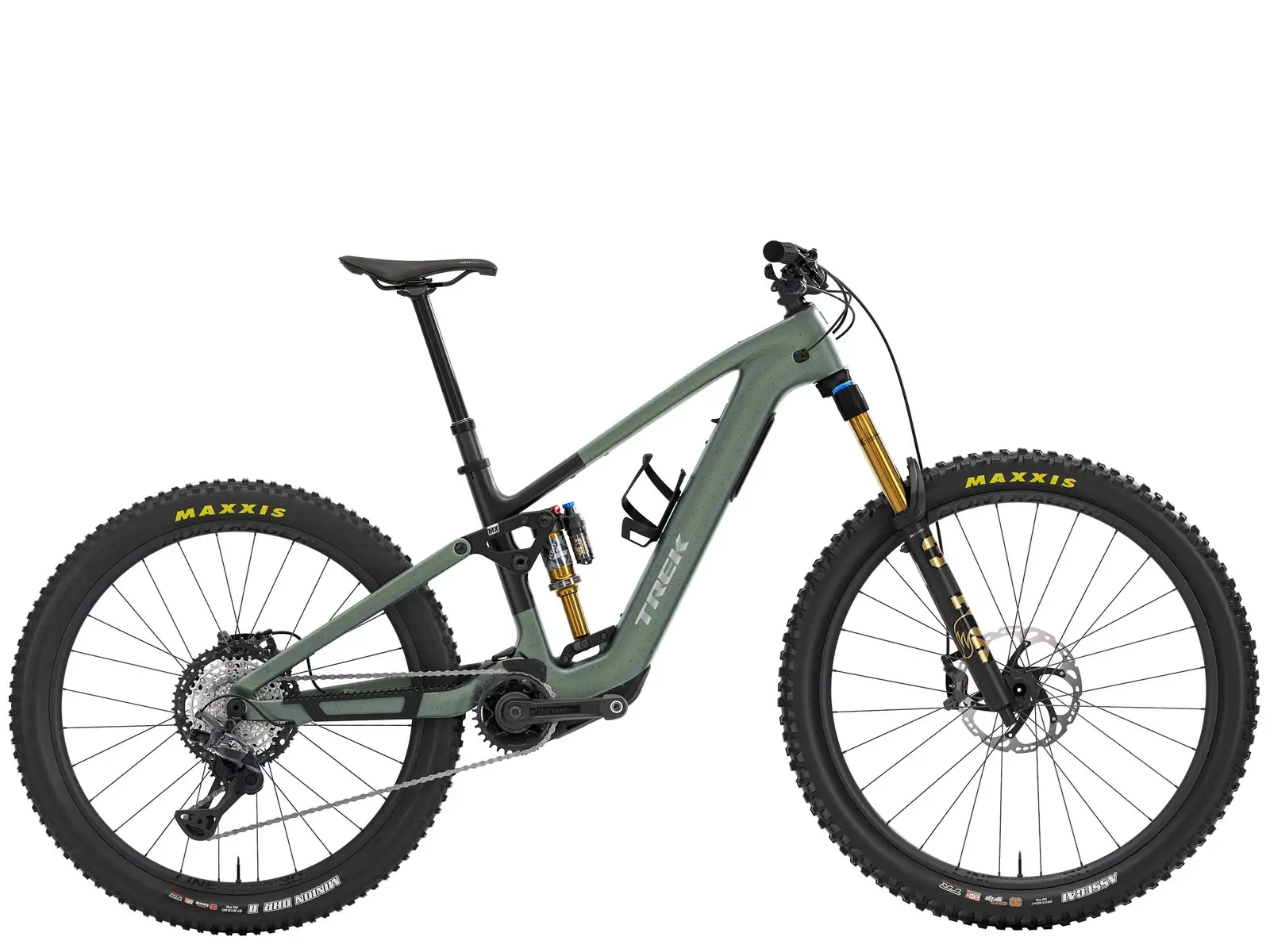

Trek
Price €8.499,00
Available colours
Battery options
Frame shape
DiamondLease this bike through your employer. Calculate the lease price per month
€
€
Please note: the stated lease and sales prices are indicative. The sales price of the (web)shop is leading for the final lease price.
Costs per month from
Specifications
+−
In general
Model year
2027
Rear wheel size
27.5
Front wheel size
27.5
Fork
Fork brand
Fox
Fork model
Fox Factory 36, Float EVOL luchtvering, GRIP X2-demper, 44 mm offset, Boost110, 15 mm Kabolt X-as, 160 mm veerweg
Stem
Stem brand
Bontrager
Stem model
Bontrager Elite, 35 mm stuurklem, 0 graden, 45 mm lengte
Chain
Chain brand
Shimano
Chain model
Shimano Ultegra/XT M8100
Frame
Frame size
42
Frame type
Uni
Frame material
Carbon
Frame size
L
Gears
Gear type
Derailleur
Gear brand
Shimano
Gear model
Shimano Deore M8200, lange kooi
Number of gears
1
Tyres
Tyre brand
Maxxis
Tyre model
Maxxis Assegai, tubeless ready, 3C, EXO+ karkas, MAXXGRIP, vouwband, 29 x 2,5 inch // Maxxis Minion DHR II, tubeless ready, 3C, Double Down, MAXXGRIP, 27.5 x 2.5"
Saddle
Saddle brand
Merkloos
Saddle model
Verse Short Comp, stalen rails, 145 mm breedte
Wheels
Wheels brand
Bontrager
Wheels model
Bontrager Line Comp 30, tubeless ready, 6-bout, Boost110, 15 mm steekas, 29”
Bontrager Line Comp 30, Tubeless ready, Rapid Drive 108, 6-bouts, SRAM XD vrijloopnaaf, Boost148, 12 mm steekas, 27,5"
Cassette
Cassette brand
Shimano
Cassette model
Shimano XT M8200, 10-51, 12-speed
Crankset
Crankset brand
E*Thirteen
Crankset model
E*thirteen E*spec Plus, 160 mm lengte
Geometry
Trail
13.2
Offset
4.4
Wheelbase
126.6
Head angle
64.2
Frame reach
48.2
Frame stack
64.1
Top tube length
61.9
Seat tube angle
72.3
Chainstay length
44
Head tube length
12.5
Seat tube length
42
Stand over height
75.5
Bottom bracket drop
3.1
Bottom bracket height
34.3
Seatpost
Seatpost brand
Bontrager
Seatpost model
Bontrager Line Dropper, 200 mm verstelbereik, MaxFlow, interne kabelvoering, 34,9 mm, 515 mm lengte
Shifters
Shifters brand
Shimano
Shifters model
Shimano XT M8200, 12-speed
Handlebar
Handlebar brand
Merkloos
Handlebar model
Race Face Turbine, lichtmetaal, 35 mm, rise 40 mm, breedte 780 mm
Front brake
Front brake type
Schijfrem met hydraulische bediening
Front brake brand
Shimano
Front brake model
Shimano XT M8200 hydraulische schijfrem met vier remzuigers // Shimano XT M8200 hydraulische schijfrem met vier remzuigers
Shimano RT-6B750, 6 bout, 200 mm
Maximale maten remsc
Rear derailleur
Rear derailleur brand
Shimano
Rear derailleur model
Shimano Deore M8200, lange kooi
Bar tape/Grips
Bar tape/Grips brand
Trek
Bar tape/Grips model
Trek Line Elite, lock-on klemconstructie
Rear brake
Rear brake type
Schijfrem met hydraulische bediening
Rear brake brand
Shimano
Rear brake model
Shimano XT M8200 hydraulische schijfrem met vier remzuigers // Shimano XT M8200 hydraulische schijfrem met vier remzuigers
Shimano RT-6B750, 6 bout, 200 mm
Maximale maten remsc
E-bike Specifications
+−
In general
E-bike type
Normaal
Walk assist
Yes
spec_handle_control
Yes
spec_order_without_battery
No
spec_order_without_charger
No
spec_order_without_display
No
Engine
Engine model
TQ-HPR60, 60 Nm koppel, 250 watt maximaal continu vermogen, 350 watt piekvermogen
Charger
Charger model
TQ 4A lader
Display
Display model
TQ led-kleurendisplay met Bluetooth & ANT+ verbindingsm
spec_operation_type
Stuurbediening (Midden)
